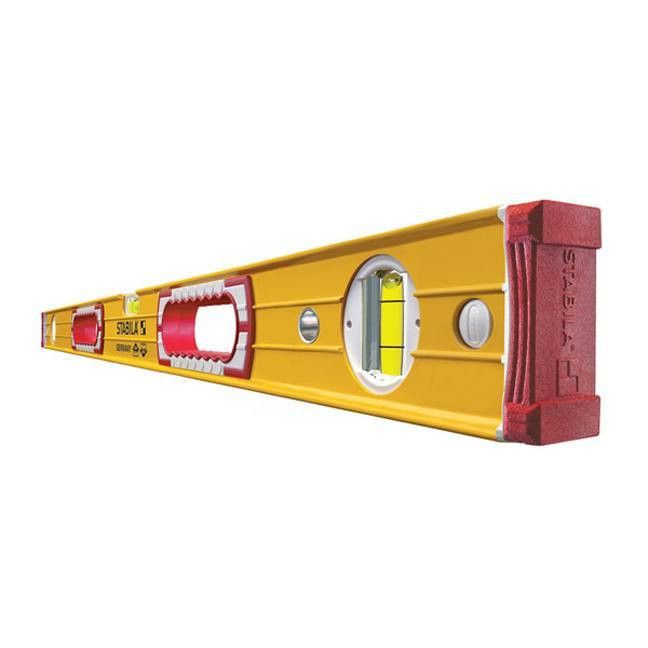

Stabila Type 96 M Level - 48"
The Stabila 38648(Model: 38648) is a professional‑grade 48-inch Type 96M magnetic level engineered for framers, finish carpenters, metal‑stud installers, and builders who require uncompromising accuracy and maximum durability. Its rare‑earth, flush‑mounted magnets generate powerful holding force, enabling completely hands‑free operation on steel studs, beams, and structural metal surfaces.
Built from a reinforced rectangular aluminum box‑beam profile, the 96M is designed to resist twisting, bowing, and jobsite abuse. Stabila’s precision‑milled measuring surfaces ensure accurate readings in every orientation, while the company’s signature epoxy‑locked acrylic vials guarantee lifetime accuracy—never leaking, fogging, or drifting out of calibration.
The 38648 also features spring‑steel hairline indicators for crisp visual alignment, two ergonomic rubber‑shielded hand grips, and removable shock‑absorbing end caps with patented wall‑grip pads for stability and precise flush measurements.
Key Features
- Rare‑earth magnetic system provides strong, hands‑free holding power on metal surfaces.
- Certified accuracy: 1/32" over 72" (0.029°) in both vial-up and vial-down positions.
- Reinforced aluminum box‑beam frame for superior rigidity and long‑term durability.
- Permanently calibrated acrylic vials —fog‑free, leak‑free, and guaranteed for life.
- Three precision vials: one horizontal, two vertical for fast plumb and level checks.
- Spring‑steel hairline indicators for improved readability and layout accuracy.
- Shock‑absorbing, removable end caps allow flush measurements into tight corners.
- Ergonomic hand holds for secure handling during framing and installation work.
Applications
- Metal‑stud framing and commercial carpentry
- Window, door, and header installation
- Cabinetry, millwork, and interior finish alignment
- Steel fabrication, welding setup, and mechanical install work
- Overhead or inverted leveling (vial‑down rated)
Specifications
- Model Number: 38648
- Length: 48 inches
- Level Type: Type 96M Magnetic
- Vials: 3 (1 level, 2 plumb)
- Accuracy: 1/32" over 72" (0.029°)
- Magnet Type: Flush‑mounted rare‑earth magnets
- Profile Material: Reinforced aluminum box‑beam
- End Caps: Removable, shock‑absorbing, anti‑slip
- Weight: Approx. 2.9 lbs
- Made in Germany
