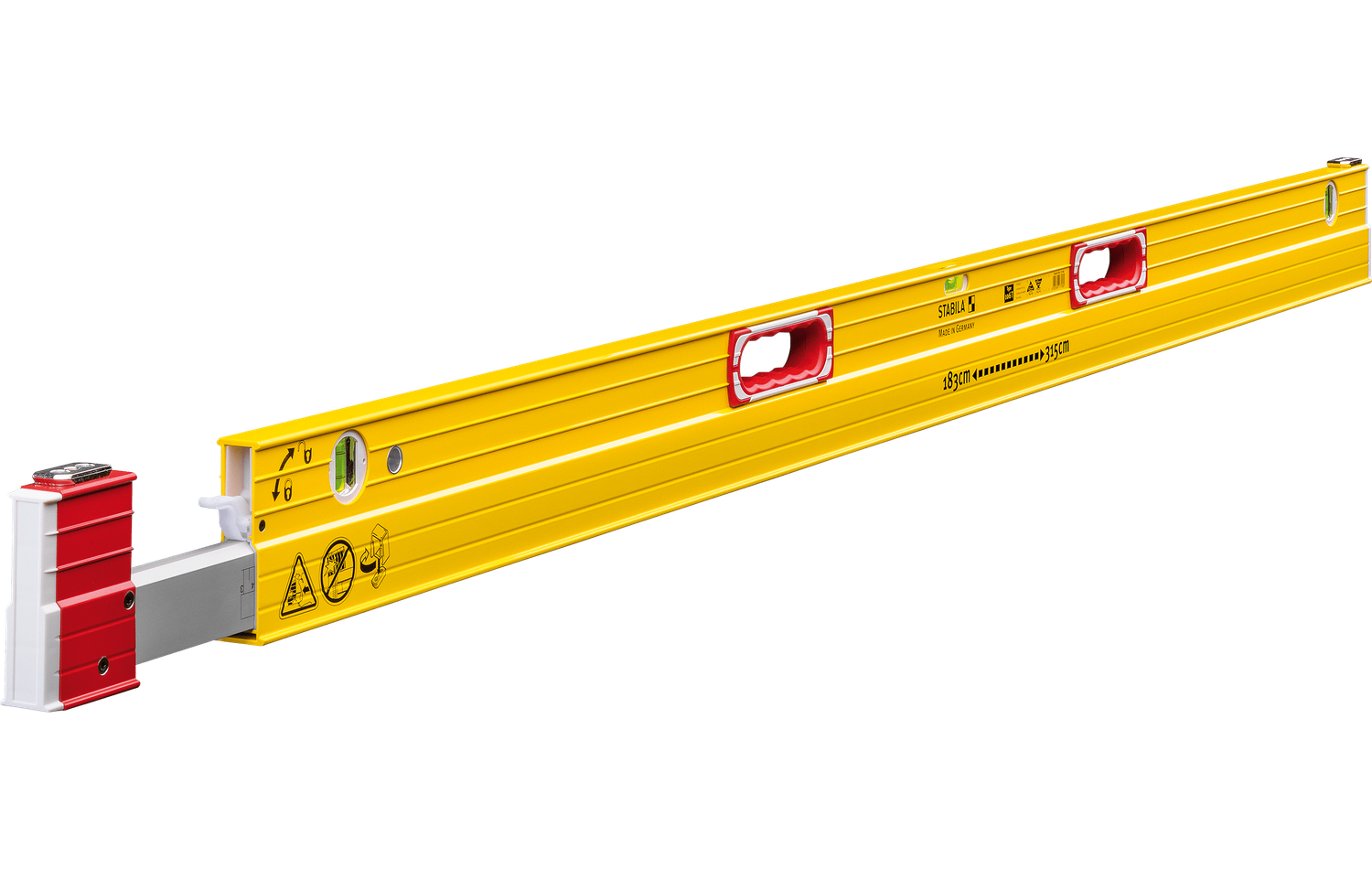

Stabila Type 106 T Telescopic Level
The Stabila Type 106T Plate Level(Model: 35712) is a professional‑grade extendable spirit level designed for precise leveling and alignment on tall walls, high door frames, floor‑to‑ceiling windows, cabinet installations, and top‑to‑bottom plate work. Extending smoothly from 7 feet to 12 feet, it eliminates the need for makeshift straightedges or stacking levels, offering unmatched reach, stability, and accuracy on complex framing tasks.
Its reinforced multi‑chamber aluminum profile ensures exceptional strength while keeping the tool lightweight and manageable. A six‑sided keyed extension rail provides rigid, wobble‑free operation, and Stabila's precision‑matched vials deliver dependable plumb and level readings, guaranteed for life. Integrated positioning scales on both sides allow fast setup for common wall heights (such as 9'1" and 10'1"), and the removable 1‑5/8" stand‑offs make it easy to measure around braces or irregular surfaces without distortion.
Whether you're framing custom homes, setting steel studs, or installing large architectural openings, the Type 106T provides the reach, accuracy, and durability needed for high‑stakes layout work.
Key Features
- Extends from 7 ft to 12 ft, allowing accurate leveling on tall walls, doors, and window openings.
- Reinforced multi‑chamber aluminum frame for strength and long‑term durability.
- Six‑sided keyed extension rail ensures smooth, rigid extension without flex.
- Dual‑sided positioning scale enables quick setup for common heights (e.g., 9'1", 10'1").
- Removable 1‑5/8" stand‑offs twist on/off to work around diagonal braces or obstructions.
- Precision‑matched vials(2 plumb, 1 level) guarantee lifetime accuracy.
- Two hand grips for comfortable handling and secure positioning.
- Shock‑absorbing end caps protect the profile from jobsite impact.
- Straight‑edge backside for marking, measuring, and layout.
Applications
- Plumb and level alignment of top and bottom wall plates
- Installation of tall doors, large windows, and sliding glass assemblies
- Framing layout for custom cabinetry and full‑height architectural features
- Ensuring plumb walls in new home builds and commercial framing
Specifications
- Model Number: 35712
- Length Range: 7 ft – 12 ft
- Vials: 1 horizontal, 2 vertical (precision matched)
- Accuracy (Retracted): ±1/32" @ 72" (normal); ±3/64" @ 72" (reverse)
- Accuracy (Extended): ±1/8" @ 120"
- Profile: Reinforced 2‑chamber aluminum
- End Caps: Standard protective caps
- Stand‑Offs: Included, removable (1‑5/8")
