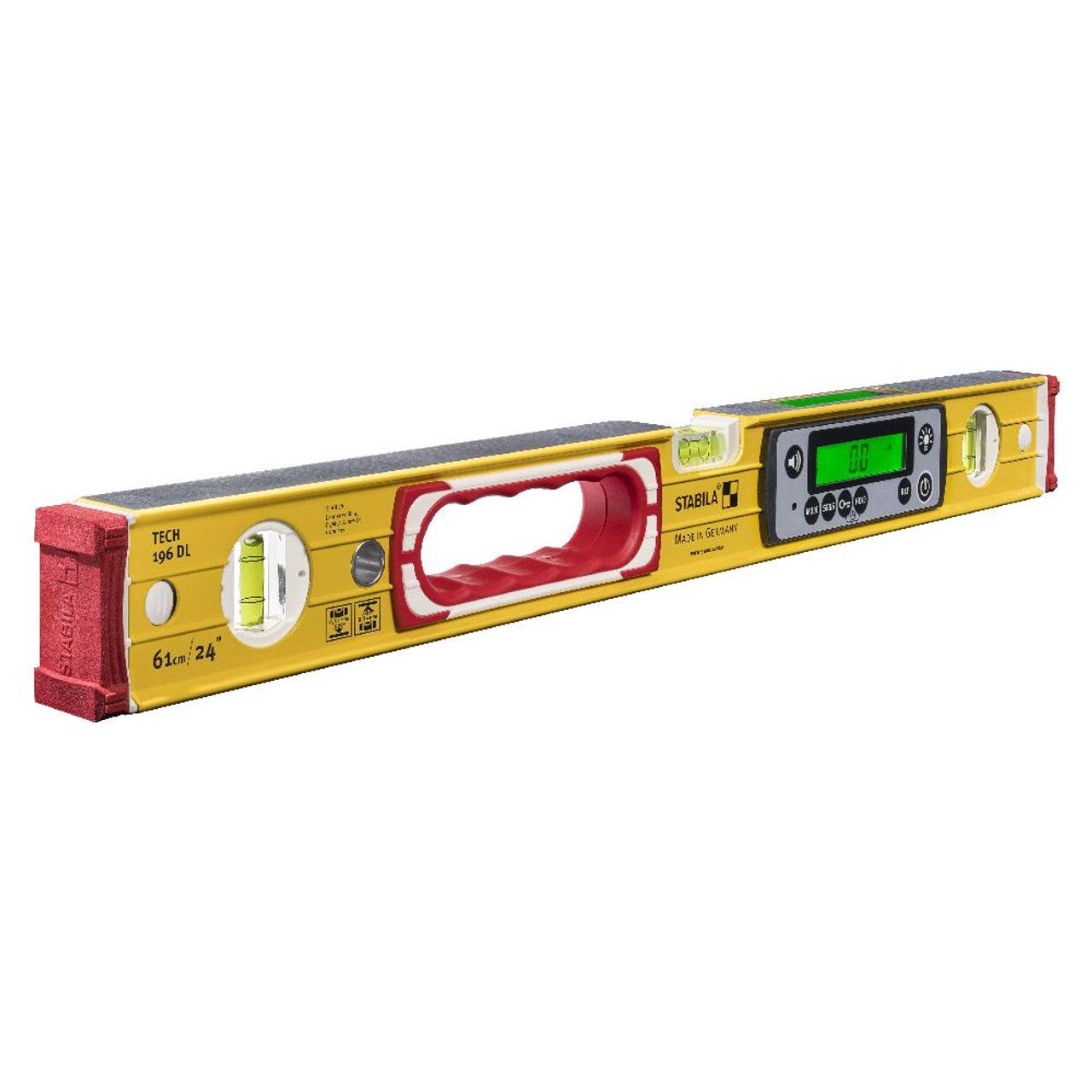

Stabila IP 67 Tech Level - 24"

The Stabila 39524(Model: 39524) is a premium 24-inch TECH 196 DL digital spirit level engineered for precision‑critical applications in carpentry, cabinetry, stair building, landscaping, concrete work, and any environment where highly accurate slope, angle, and level readings are essential.

Featuring dual illuminated digital displays, this level provides instant readouts of inclines, slopes, and angles in multiple measuring modes, including degrees, percent grade, rise/run, mm/m, and inch/foot—both decimal and fractional. The level’s advanced ULTRA‑PROTECT IP67 housing offers full dust protection and temporary water submersion resistance, allowing cleaning under running water and reliable performance in extreme jobsite conditions.

Stabila’s CAL‑FREE technology ensures the electronic module never requires recalibration, even after drops or temperature changes. Acoustic guidance, a rotating reverse‑display function, and angle‑transfer REF‑MODE streamline complex layout tasks for maximum efficiency.

Key Features

• Two illuminated digital displays for clear readouts in any position or lighting condition.
• ULTRA‑PROTECT IP67 housing provides waterproof and dustproof protection; tool can be rinsed clean under running water.
• Calibration‑free electronics maintain accuracy even after drops or temperature swings.
• Acoustic guidance system enables hands‑free alignment with audible signals.
• Multiple measurement modes: degrees, %, mm/m, inch/ft (decimal and fractional), plus roof‑pitch mode for fast slope calculation.
• REF‑MODE allows saving and transferring measured angles to other components.
• Shock‑absorbing, removable end caps aid flush corner scribing and protection on impact.
• Made in Germany, built for rigorous daily jobsite use.

Applications

• Cabinetry, millwork, and installation alignment
• Staircase layout and construction
• ADA‑compliant ramp slope verification
• Concrete forms, grading, and landscape layout
• General framing and precision angle transfer

Specifications

• Model Number: 39524
• Length: 24 inches
• Protection Class: IP67 (dustproof & water‑resistant)
• Digital Accuracy:
  • 0° & 90°: ±0.05°
  • 1°–89°: ±0.10°
• Vial Accuracy: ±1/32" over 72" (0.029°)
• Measuring Modes: °, %, mm/m, in/ft (decimal/fraction), rise/run
• Operating Life: Up to 400 hours (without illumination)
• Battery Type: 2 × AA
• Number of Measuring Surfaces: 2
• End Caps: Removable, wall‑grip, shock‑absorbing
• Included: Carrying case
