Product Details

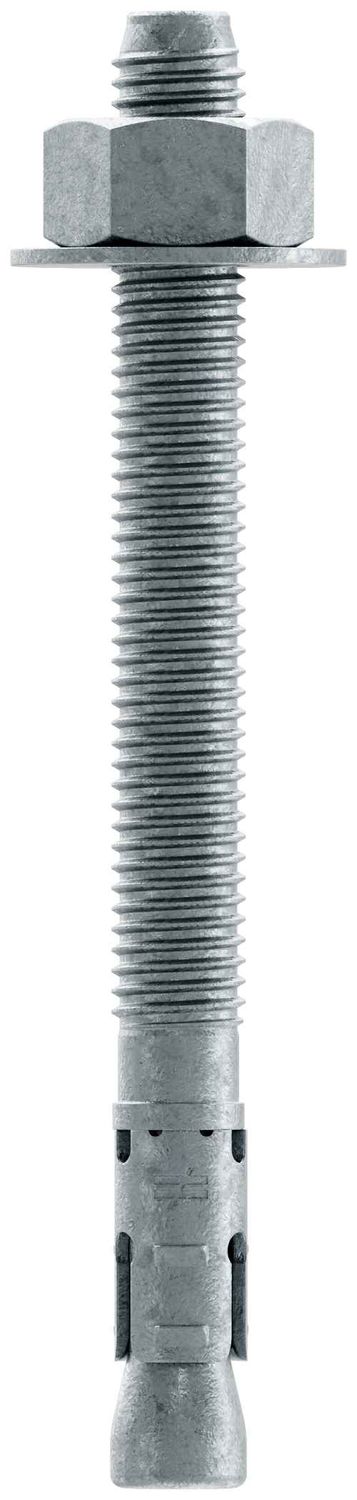

The Strong-Bolt 2 wedge-type expansion anchor in a mechanically galvanized finish can be used where a high-load-resisting anchor is needed for exterior applications. It has the same dual undercutting embossments on each clip segment as the zinc-electroplated version. Suitable for horizontal, vertical and overhead applications, the STB2-MG anchor is tested in uncracked concrete in accordance with AC193 and also in uncracked masonry in accordance with AC01.

Key Features

• Chamfered top designed to prevent mushrooming during installation
• Suitable for horizontal, vertical and overhead applications
• Tested for minimum concrete thickness of 3 1/4"
• Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes
• Tested in uncracked concrete per ACI355.2 and AC193
